Wire Green Vinyl 9 Gauge Chain Link Fence Fabric Residential 70x70mm

Product Categories
Anping Aobiao Wire Mesh Products Co.,Ltd
Contact Now

Wire Green Vinyl 9 Gauge Chain Link Fence Fabric Residential 70x70mm

  • 1
  • 2

Brand Name : AOBIAO

Model Number : AB-CF-001

Certification : CE, ISO

Place of Origin : Anping China

MOQ : 30 rolls

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 2000 roll per week

Delivery Time : about 25-30 days after receicing the deposit.

Packaging Details : 1.woven bags of the above and bottom,high quality package or as customes requested 2.In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet. 3. according to customers requirement.

Product Name : 9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential Chain Link Fence

Wire diameter : 11.5ga. 11ga. 9ga. etc.

Roll Width : 0.5-6m

Length : 10m-30m

Mesh opening : 40x40mm, 50x50mm,60x60mm,70x70mm

Top Rail : 1 5/8” x .065,1 5/8” x CQ-20,1 5/8” x Schedule 40

Fence Application : Fence Mesh,railway,Sport Field,etc,Residential

Surface : PVC coated,Hot Dipped Galvanized,Galvanized+PVC Coated,hot-dipped galvanized,PVC sprayed

Pressure treated wood type : Heat Treated,Nature,Chemical

Usage : Garden Fence, Sport Fence, Farm Fence

Packing : Pallet,Waterproof Paper,in rolls with jute or pallet

Color : Green,white,black

Line Posts : 1 7/8” x .065,2 3/8”,2 7/8”

Type : galvanized or pvc coated

Contact Now

9 Gauge Wire Green Vinyl Chain Link Fence Fabric Residential Chain Link Fence





Residential Chain Link Fence product description:

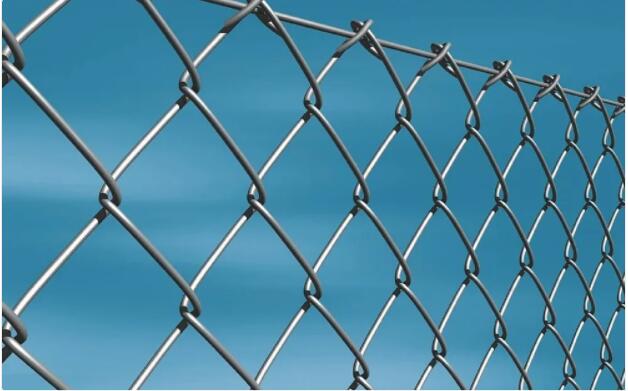

A chain-link fence (also referred to as wire netting, wire mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence) is a type of woven fence usually made from galvanized or PVC-coated steel wire. The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other

Wire Green Vinyl 9 Gauge Chain Link Fence Fabric Residential 70x70mm



Residential Chain Link Fence Features and benefits:


Commercial chain-link fence systems are commonly used because they're durable and easy to install. All steel components of a galvanized chain-link fence system are hot-dip zinc coated and guaranteed with a 12-year coating warranty. Zinc is an element that's applied to steel in molten form, creating a coating that protects the steel from rusting. Many of the fittings used in commercial fence systems are made from malleable steel and cast iron for durability. Ties used to attach the chain link fabric to the framework between terminal posts are made from aluminum, resulting in maintenance-free security.



Residential Chain Link Fence Specifications:



Chain link fence System:
Chain-Link Fabric
Type
Specification
Gauge
Mesh
Heights
Selvage		 Galvanized before Weaving
Low carbon steel wire
9 or 11
2"
3', 42", 4', 5', 6', 7', 8', 10' and 12' or as your request
Knuckled and Knuckled, Barb and Knuckled 6', or Barb and Barb
Framework
Top Rail
3' to 5' High

6' to 12' High		 32mm O.D.

42mm O.D.
Line Posts
3' to 5' High

6' to 12' High		 48mm O.D.

60mm O.D.
Terminal Posts
3' to 12' High

For Heavy Gates		 60mm O.D.

100mm O.D.
Gate
Fabric
Frame		 Same Mesh and Gauge as Chain Link Selected
Same as Top Rail Selected
Fittings
Steel Fittings
Tie Wires		 Hot Dip Galvanized Or PVC coated available
galvanized
Caps, Eye Tops,
Rail Ends		 Malleable, Cast Iron Steel, Pressed
Material Composition
Colors		 Polyethylene Thermoplastic

Green, Black, Brown, Gray, Redwood, Blue, Desert Sand

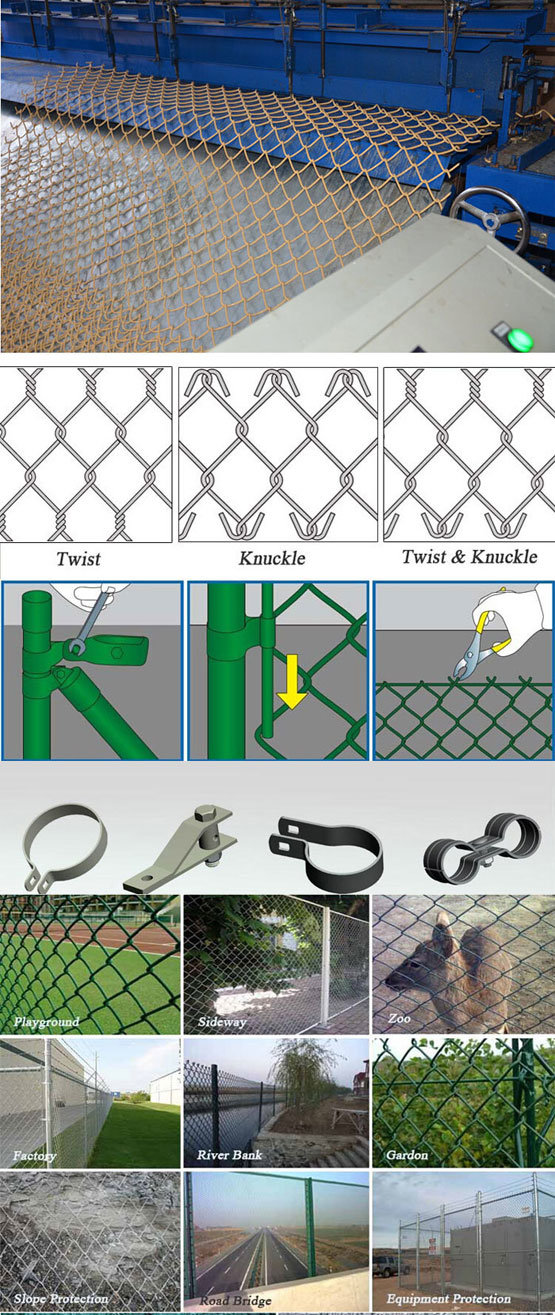

Residential Chain Link Fence accessoriess:



Wire Green Vinyl 9 Gauge Chain Link Fence Fabric Residential 70x70mm
