2.0m High W Section Galvanized Palisade Fencing Steel

Product Categories
Anping Aobiao Wire Mesh Products Co.,Ltd
Contact Now

2.0m High W Section Galvanized Palisade Fencing Steel

  • 1
  • 2

Brand Name : AOBIAO

Model Number : FSL-PF-006

Certification : ISO,CE

Place of Origin : Anping China

MOQ : 50 sets

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 sets per month

Delivery Time : About 25-30 days after receiving the deposit.

Packaging Details : pallets

Product name : 2.0m High Steel Palisade Security Fencing Galvanised Steel Palisade

Style : D section or W section

Type : Fencing,Trellis & Gates,"D"or"W",palisade fence

Pale top : Single pointed Triple pointed Square Round and notched Rounded

Pales : 62mm, 65mm, 68mm,70mm

Rail : 50x50mm

H Post : 50x100mm

Height : 1800mm, 2400mm, 3000mm

Length : 2.75m, 2.98m, 3.0m

Angle Thickness : 5.0mm, 6.0mm

Pale thickness : 2.0mm, 3.0mm

Application : Residential,Garden,school,fence

Contact Now

2.0m High Steel Palisade Security Fencing Galvanised Steel Palisade





Steel palisade introduction



It is one of the security fencing series. It is popular in Europe, Africa, Australia, PNG, etc. It is widely used because of people's environmental pursuit, publicity of personal cleanliness, and pursuit of foreign style. Palisade fencing with beautiful structure and various styles are popular and widely used.


There are several features of steel Palisade Security Fencing that make it such an effective security fencing system. Palisade Fencing is manufactured using a cold rolling process and whilst this makes the steel lighter in weight than other metals, it does not compromise its strength in any way. Cold rolling involves steel being passed through a number of rollers at room temperature, where the steel is manipulated gradually until its shape is formed, so no heat is required for this manufacturing process. The steel is also galvanized to protect the Palisade Fencing against rust and the addition of polyester powder coating will also increase the resilience of the steel, as well as give it a brighter look.

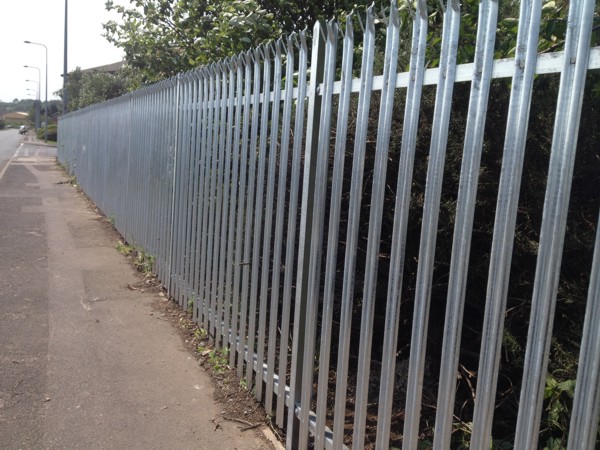

2.0m High W Section Galvanized Palisade Fencing Steel



Steel palisade specification



Specification of Palisade Fence
Panel size W section Pale: 70mm Angel Rail Post(pick one of two)
Height Width Pale Thick Qty:Pale Cross Rails Qty Square post Qty I Post Qty
1.8m 2.75m 2/2.5/3mm 17pcs 40*40 2-3pcs 60*60mm 1pcs 100*55mm 1pcs
2.1m 2.75m 2/2.5/3mm 17pcs 50*50 2-3pcs 80*80mm 1pcs 100*68mm 1pcs
2.4m 2.75m 2/2.5/3mm 17pcs 60*60 2-3pcs 100*100mm 1pcs 120*74mm 1pcs
3.0m 2.75m 2/2.5/3/3.5mm 17pcs Thic3-6mm 2-3pcs Thic1.5-4mm 1pcs Thic3.5-5.0 1pcs
W section Pale: 62mm
1.8m 2.75m 1.5/2/2.5mm 17pcs 40*40 2-3pcs 60*60mm 1pcs 100*55mm 1pcs
2.1m 2.75m 1.5/2/2.5mm 17pcs 50*50 2-3pcs 80*80mm 1pcs 100*68mm 1pcs
2.4m 2.75m 1.5/2/2.5mm 17pcs 60*60 2-3pcs 100*100mm 1pcs 120*74mm 1pcs
3.0m 2.75m 1.5/2/2.5mm 17pcs Thic3-6mm 2-3pcs Thickness1.5-4mm 1pcs Thic3.5-5.0 1pcs
D Pale section: 65mm
1.8m 2.75m 1.5/2/2.5/3mm 17pcs 40*40 2-3pcs 60*60mm 1pcs 100*55mm 1pcs
2.1m 2.75m 1.5/2/2.5/3mm 17pcs 50*50 2-3pcs 80*80mm 1pcs 100*68mm 1pcs
2.4m 2.75m 1.5/2/2.5/3mm 17pcs 60*60 2-3pcs 100*100mm 1pcs 120*74mm 1pcs
3.0m 2.75m 1.5/2/2.5/3mm 17pcs Thic3-6mm 2-3pcs Thick1.5-4mm 1pcs Thic3.5-5.0 1pcs
Accessories
Fish plate 30mm×150mm×7mm40mm×180mm×7mm 2pcss(according to the cross rails)
Bolts&nuts, M8 34pcs
Bolts&nuts, M12 4pcs
Pale head:Can be single pointed, triple pointed, square tops, round and notched tops or rounded only.



Steel palisade surface treatment:



•  Hot dipped galvanized after manufacturing as per ASTM A123, BS/ISO 1461 standard
•  Pre galvanized and powder coated in RAL colors
•  HDG and powder coated in RAL colors


Steel palisade features



•  Easy installation
•  With a high cost level compare with other type fence
•  Nice looking
•  Different options on color according to the using environment
•  Strong anti rust and anti corrosion ability
•  Strong and high security, it is possible of putting concertina razor wire at the top

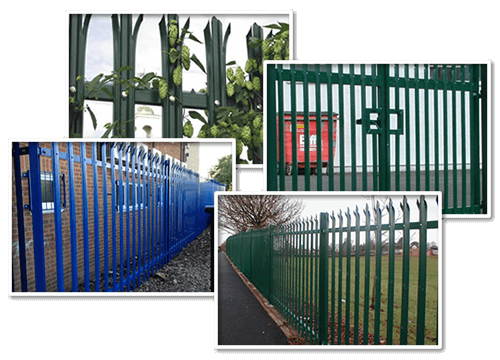

Steel palisade application



electricity providers and regional networks, water industry, telecom industry, police and law enforcement, railway line/track protection, motorways and highway protection, schools, colleges and universities, research laboratories.



2.0m High W Section Galvanized Palisade Fencing Steel
