High Security D Section Galvanised Palisade Fencing Powder Coated

Product Categories
Anping Aobiao Wire Mesh Products Co.,Ltd
Contact Now

High Security D Section Galvanised Palisade Fencing Powder Coated

  • 1
  • 2

Brand Name : AOBIAO

Model Number : FSL-PF-007

Certification : ISO,CE

Place of Origin : Anping China

MOQ : 50 sets

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 sets per month

Delivery Time : About 25-30 days after receiving the deposit.

Packaging Details : pallets

Product name : High Security Steel Garden Aluminum Triple Point Steel Galvanized Powder Coated Palisade Fence

Style : D section or W section

Pale top : Single pointed Triple pointed Square Round and notched Rounded

Height : 1800mm, 2400mm, 3000mm

Length : 2.75m, 2.98m, 3.0m

Rail : 50x50mm

Pales : 62mm, 65mm, 68mm,70mm

Angle Thickness : 5.0mm, 6.0mm

Pale thickness : 2.0mm, 3.0mm

H Post : 50x100mm

Type : Fencing,Trellis & Gates,"D"or"W",palisade fence

Application : Residential,Garden,school,fence

Contact Now

High Security Steel Garden Aluminum Triple Point Steel Galvanized Powder Coated Palisade Fence


Powder coated palisade fence introduction


Frame Material
Metal

Steel
Frame Finishing
Powder Coated
Product Name
Steel Fence/Palisade Fence
Material
Low Carbon Steel
Application
House/Home/Garden/School
Surface Treatment
Galvanized+Powder Coated
Corrosion
Well corrosion resistant
Height
Custom
Post colour
Customize


High Security D Section Galvanised Palisade Fencing Powder Coated

Powder coated  palisade fence size


Height
Post Dimensions
Rail Dimensions
Support Legs
Corrugated Steel Palisades

1.2m
102x44 or 100x55
40x40x6mm
1
W - 2.0mm or D - 3.0mm

1.5m
102x44 or 100x55
40x40x6mm
1
W - 2.0mm or D - 3.0mm

1.8m
102x44 or 100x55
40x40x6mm
1
W - 2.0mm or D - 3.0mm

2.0m
102x44 or 100x55
45x45x6mm
1
W - 2.0mm or D - 3.0mm

2.1m
102x44 or 100x55
45x45x6mm
1
W - 2.0mm or D - 3.0mm

2.4m
102x44 or 100x55
45x45x6mm
1
W - 2.0mm or D - 3.0mm

2.7m
102x44 or 100x55
50x50x6mm
1
W - 2.0mm or D - 3.0mm

3.0m
127x76
50x50x6mm
2
W - 2.5mm or D - 3.5mm

3.6m
127x76
50x50x6mm
2
W - 2.5mm or D - 3.5mm

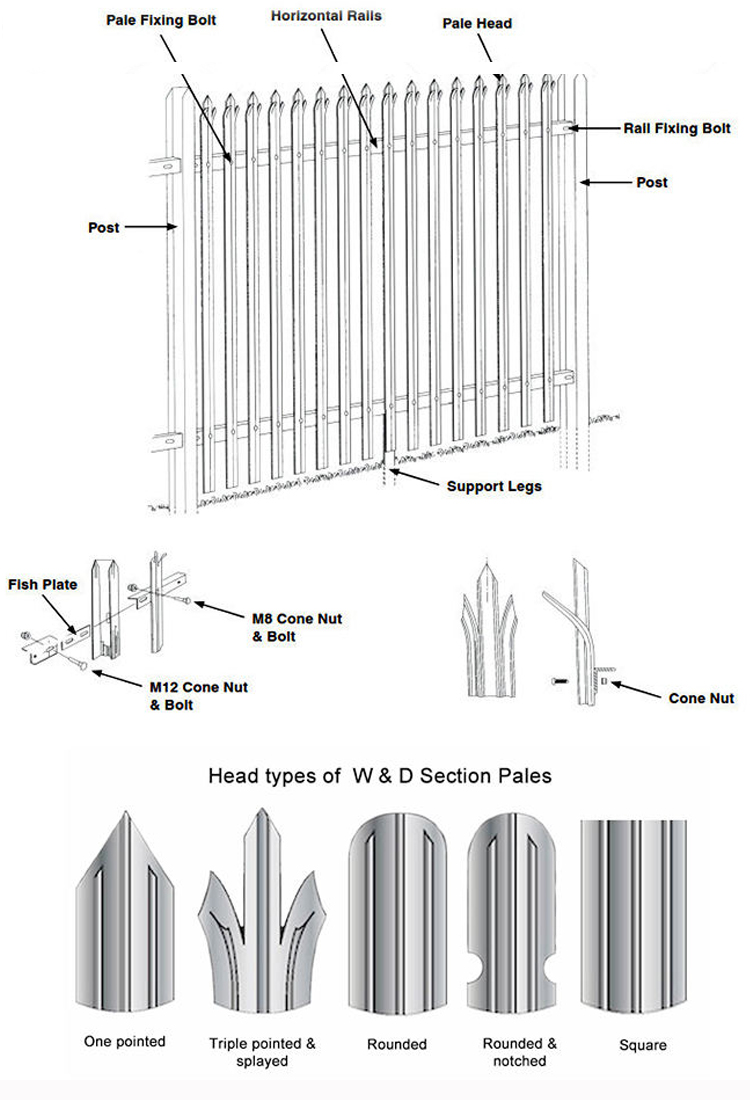

Powder coated palisade fence drawing

High Security D Section Galvanised Palisade Fencing Powder Coated

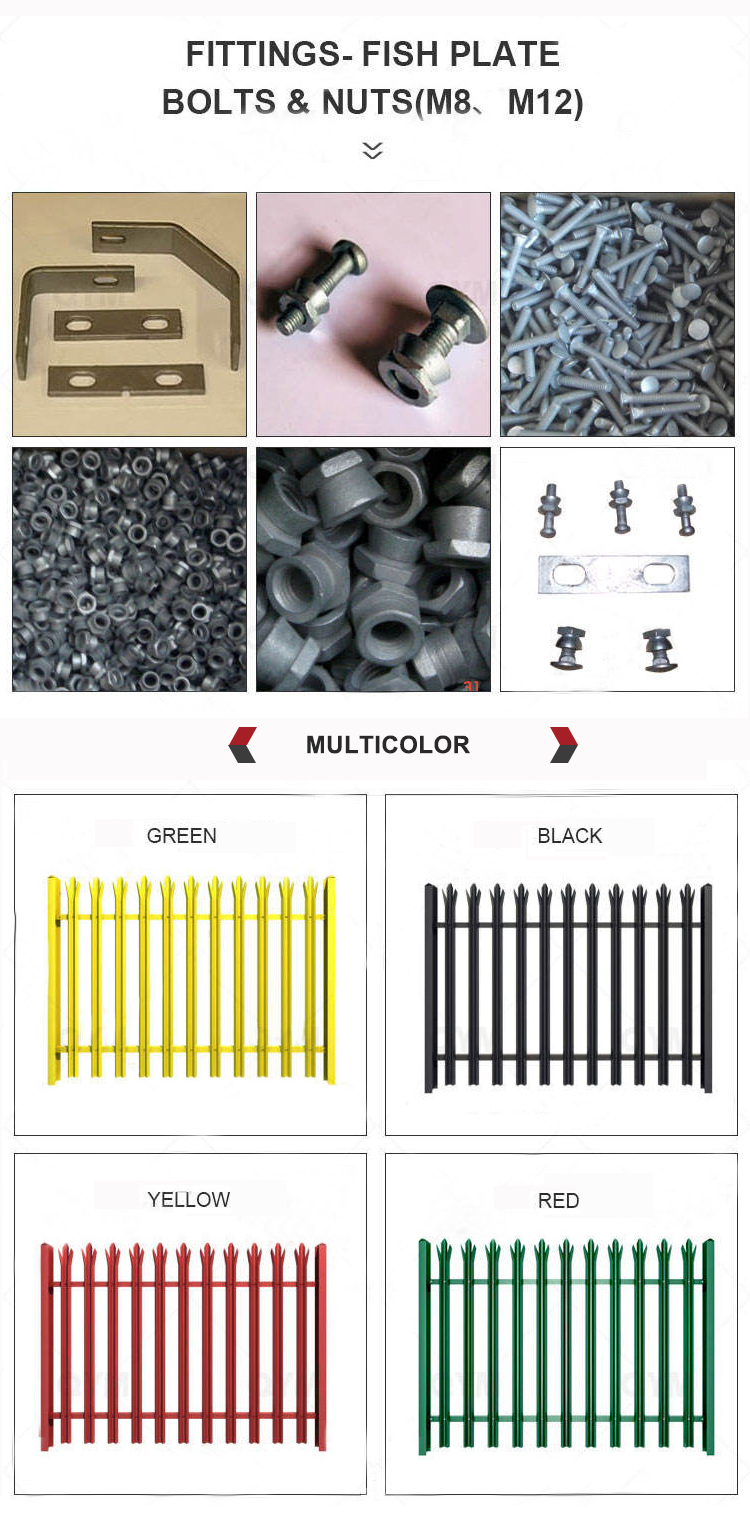

Powder coated palisade fence style and accessories


Pales-"W" section
Most useful vertical type of pales for palisade fencing, which is always the customers' first choice for pales.
Width
Thickness
Surface Treatment
Head
Height
68mm-70mm
2.0mm
Galvanized and electrostatic polyester coated or Hot dipped galvanized
Single point Triple point
1200mm-3000mm
2.5mm
3.0mm

Pales-"D" section
Compared with "W" profile pales, "D" profile is more economical.
Width
Thickness
Surface Treatment
Head
Height
60mm
2.0mm
Galvanized and electrostatic polyester coated or Hot dipped galvanized
Single point Triple point
1200mm-3000mm
2.5mm
3.0mm



Pale-Angle iron
Its cost is similar with "D" profile, but its structure is simpler than "D" profile
Width
Thickness
Surface Treatment
Head
Height
40*40mm
2.0mm
Galvanized and electrostatic polyester coated or Hot dipped galvanized
Single point Triple point
1200mm-3000mm
3.0mm



High Security D Section Galvanised Palisade Fencing Powder Coated

Powder coated palisade fence usage

Common uses include railway and track protection, schools, colleges and universities, research laboratories, motorways and highways protection, utility companies protection and around industrial sites.
