Industrial And Commercial Steel Powder Coated 2.5m Metafence Pro V Mesh
Metafence Pro V Mesh Description:
The Metafence Pro V Mesh System provides a strong yet unobtrusive perimeter fence suited to a huge variety of applications. Efficient manufacturing processes ensure that the system is long-lasting at an affordable cost.
The system is supplied in fully welded panels, allowing quick and simple installation. Special fixing clips give greater flexibility where ground conditions require the stepping of panels.
Metafence Pro V Mesh size:
| Fence panel | Material | Low carbon steel wire |
| Wire diameter | 3.0mm-6.0mm |
| Opening(mm) | 50x100, 50x150,50x200,75x150,75x200 |
| Height | 0.8-3M |
| Width | 2-3M |
| Panel type | with or without curves are both available |

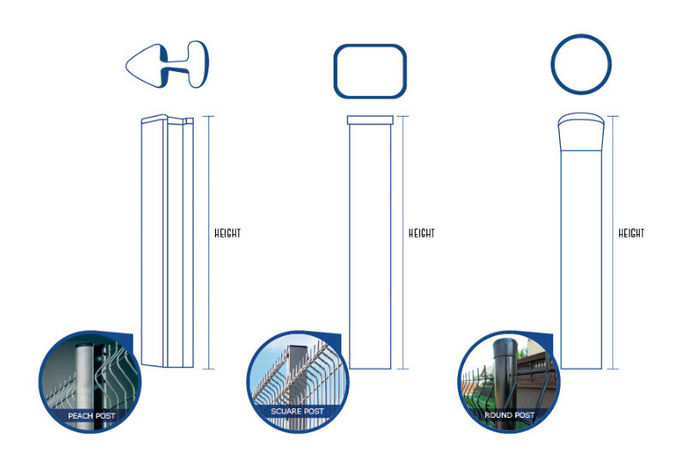

| Fence post | Square post | 40x40mm,50x50mm,60x60mm,40x60mm |
| Round post | 40-60mm |
| Peach post | 50x70mm, 70x100mm |
| Post thickness | 1.2-2.5mm |
| Post height | 0.8-3.5M |
| Post base | with or without the base flangle are both available |
| Post fittings | post clips with bolts and nuts ,post rain post |
| Fence finishing | Hot -dipped galvanized |
| PVC powder spraying coated or PVC powder dipped coated |
| Galvanized +PVC powder spraying/ dipped coated |
| Packing | 1. with pallet; 2. bulk in container |
| The customization is also available |
Metafence Pro V Mesh Typical applications
- Industrial and commercial sites
- Parks and recreation areas
- School and campuses
Metafence Pro V Mesh Benefits
- Strong and reliable security
- Attractive appearance
- Vandal resistant
- Quick and simple installation
- Cost effective
- Low maintenance
Metafence Pro V Mesh standard system
Pro V Mesh panels
The Pro V Mesh panels have a mesh size of 200 x 50 mm, formed from 5 and 6 mm diameter wires, fully welded at every intersection. The horizontal 'V' profiles add to the rigidity of the panels and create an attractive feature to the system once installed.
Pro V Mesh posts
The Pro V Mesh posts are manufactured from 60 x 60 x 2 mm square hollow section and supplied with plastic caps as standard. Metafence use special mesh fixing clips spaced at 450 – 500 mm vertical centres, with the bolt heads counter sunk within the clips to deter attack from the outside and Permacone security nuts to the inside, ensuring a secure anti-vandal fixing.
Metafence Gates
Metafence offer Gates of all sizes and configuration that are manufactured to the highest standards and maintain the site security offered by the fences. Swing, sliding cantilever, and bi-folding gates are offered for manual use or automated by the specialist department of Metafence.
Technical / installation
Standard heights: 2000 and 2400 mm. (These are the only height available)
Pro V Mesh System can be manufactured upon request to suit projects requiring:
- Bolting down
- Wall mounting
- Burying
- Additional security toppings
